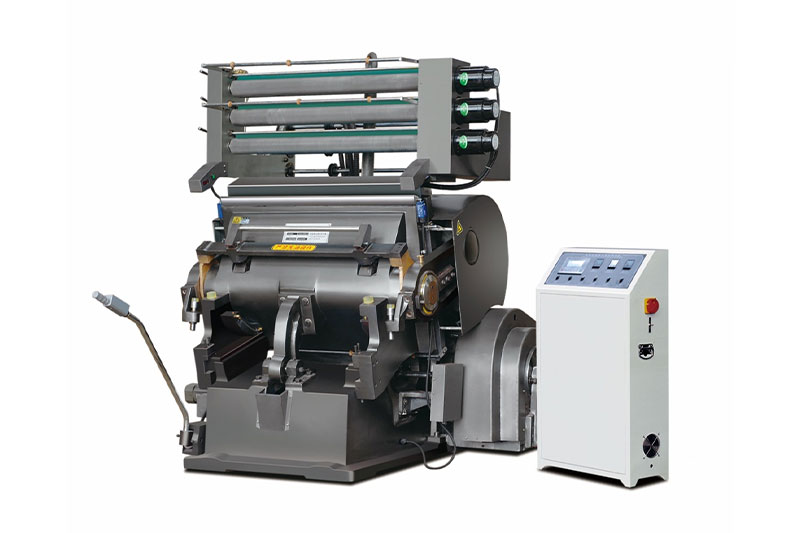

TYMK-1100 Program Control Foil Stamping Machine

Features

★ With compact structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.

★ Three functions: single sheet cutting, continuous cutting, dwell cutting.

★ Main body is made of high quality integrated cast iron, with high strength and rigidity.

★ Suitable for cutting paper board, corrugated paper.

★ Automatic oil pump.

★ Infrared safety.

Feature of hot foiling system

★ TYMK series machine has hot foil stamping, die cutting and embossing functions.

★ 3 set of PLC controlled step motor, easy to adjust and have high accuracy.

★ Stepper motor has large torque and can set the requested size, make the job accurate and reduce waste.

★ Separate gear motor for unwinding and rewinding, makes the unwinding and rewinding more convenient.

★ Aluminum alloy anilox rollers after special process treatment, has the feature of light and long durability.

★ Optional honeycomb plate makes heating more convenient and easy for makeready.

★ 3 temperature zone, stainless steel heaters make sure the fast heat up, saving power, and increase the hot foil stamping quality.
