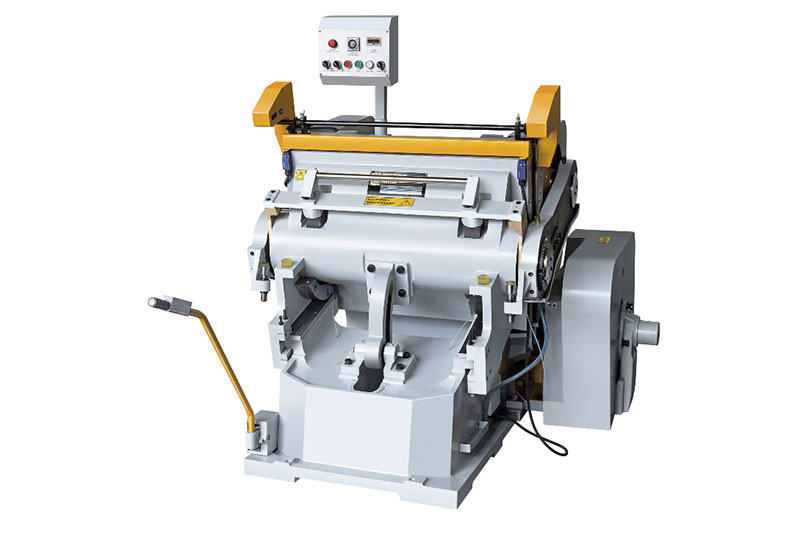

ML-930A Tiger Model Long Lasting High Quality Die Cutting Machine

Resin sand casting, High strength cast iron HT250.
Frame inner size:930×670mm
Speed:25±2/Min
Rule length:<38m
Product Description

★ Resin sand casting, High strength cast iron HT250.

★ Enhanced structure based on X model.

★ Enhanced nodular pulling arm.

★ Three functions: single sheet cutting, continuous cutting, delay cutting.

★ All the bearings and electrical parts are imported.

★ IR safety device.

★ Automatic central lubrication system.

★ CE safety cover optional

★ Suitable for cutting paper board, corrugated paper

Product Parameters

ML-930A die cutting and creasing machine

Chase inner size

930×670mm

Dimension

1960×1760×1720mm

Speed

25±2/Min

Rule length

<38m

Weight

3700Kg

Total power

4KW

Product Details
Hi strength cast iron
Operative die chase
Curve ring and shaft with copper bushing
Imported electrical parts and bearing
Infrared safety
Automatic oil pump
