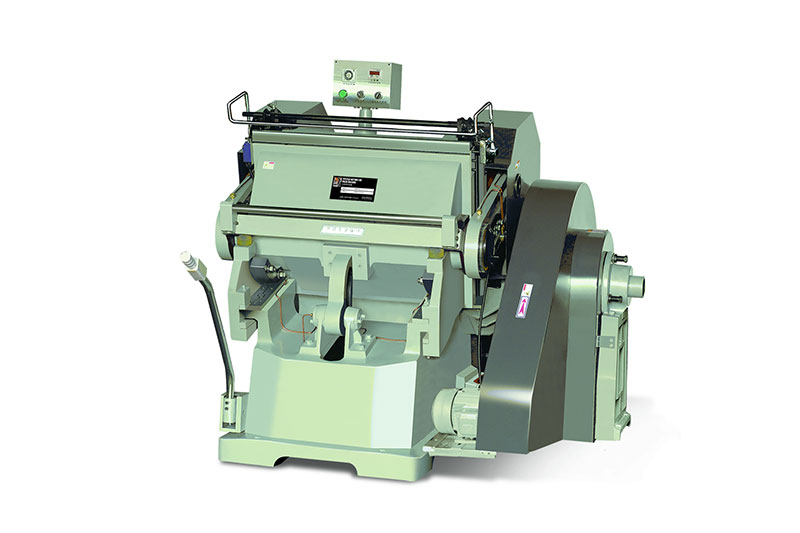

ML-750AJ Die Cutting Machine

ML-750AJ Die Cutting and Creasing Machine with Heat System

ML-750AJ Die Cutting and Creasing Machine with Heat System is made of resin sand casting, equipped with infrared safety device, automatic central lubrication system, CE certified
Frame inner size:750×520mm
Speed:26±2/Min
Rule length:＜22m
Get a inquiry
Product Description

★ Resin sand casting, High strength cast iron HT250.

★ Enhanced nodular pulling arm.

★ All the bearings and electrical parts are imported.

★ IR safety device.

★ Automatic central lubrication system.

★ CE safety cover optional

Product Parameters

ML-750AJ die cutting and creasing machine

Frame inner size

750×520mm

Dimension

1540×1650×1650mm

Speed

26±2/Min

Rule length

＜22m

Weight

2300Kg

Total power

10KW
Product Details
Hi strength cast iron
Active die chase
Curve ring and shaft with copper bushing
Imported electrical parts and bearing
Infrared safety
Automatic oil pump
Stainless steel heater
High efficient heating plate
Other Product
TYMA-750 Manual Hot Foil Stamping Machine
Max sheet size:750×520mm
Speed:26±2/Min
TYMA-930 Hot Foil Stamping Machine
Max sheet size:930×670mm
Speed:23±2/Min
TYMA-930CE Hot Stamping Die Cutting Machine
Max sheet size:930×640mm
Speed:23±2/Min
