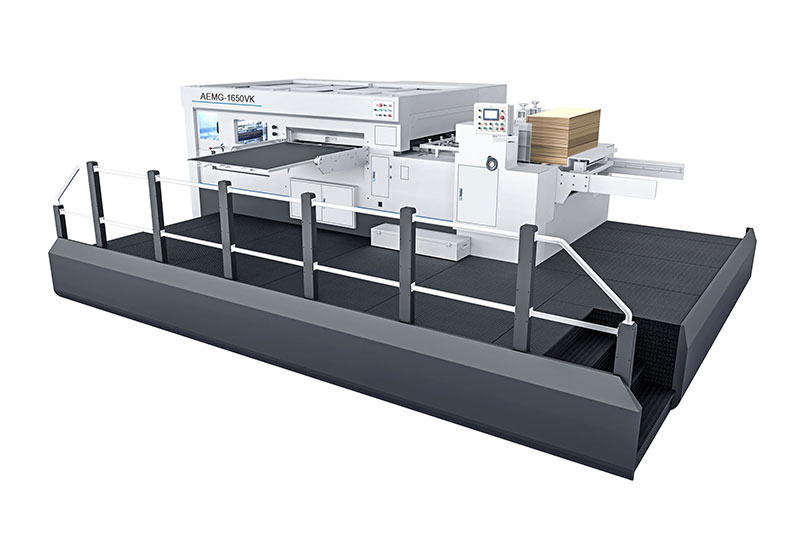

AEMG-1650VK Lead Edge Feeding Automatic Die Cutting Machine With Full Stripping

Safety, Energy Saving, Efficient

1. Platen press is driven by Siemens main motor with Delta inverter; the running of complete machine is controlled by PLC centralized controlling system which can automatically examine the working status and test unusual status as well as record the working condition. According to the Europe Safety Standard, we design reasonably to make the operability and safety perfect combination.

2. Advanced alarm system of starting up will remind operator to leave the unsafe area. Automatically detecting whole process, if malfunction, non-paper or paper stuck, the pneumatic clutch will separate and stop automatically which reduce the waste of paper, protect the staff and equipment.

3. Elaborate pre-stacked device and paper feeding & delivery non-stop devices reduce the time of stacking, improve the efficiency of machine and increase your income.

4. Selected European, Japanese, Taiwan electrical and pneumatic components improve the stability of the machine and reduce the frequency of inanimateness.

5. Mainframe and base adopt high strength spheroidal graphite iron QT500-7 which is accurately processed by numerical control center, guarantee the machine run stably in long time when bearing large pressure. The cores of the platen press machine such as crankshaft, worm gear, are all imported high-class alloy steel, which are processed by quenching and high temperature tempering with a long working life.

6. Lubrication system for core parts is equipped with display device for oil pressure and alarming device for insufficient pressure of oil and air.

7. Supply long-term and complete technical training as well as prompt free maintains for one year, guarantee that our clients can fully master the production technology of our equipment. Our machine is with Perfect design, accurate installation, high stability, high security, low noise.

Paper Feeding Section: feeder and conveyor table

1. Advanced lead edge feeder for thick paperboard and corrugated board.

2. Conveyer table with anti-wore PU press rollers and the brush wheels guarantees high feeding accuracy of paper, the conveyer belt can be adjusted nonstop.

3. Side lay and front lay guarantee accuracy of the sheet position.

4. Skew paper and accumulated paper detection function and auto stop function: when the sensors detect the paper is skewed or accumulated before being delivered to platen press section, machine will stop.

5. Servo motor to convey the paper, avoid overlap of two sheets.

Platen Press Section

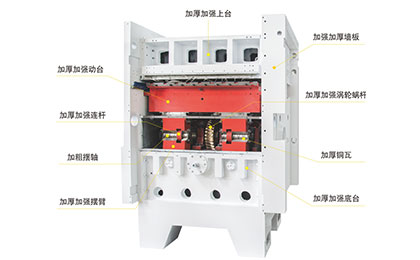

1.Main body adopts high-strength ductile iron QT500 with special casting process. The Ni-Cr-Mo Alloy crankshaft with special craft process treatment and super wear-resistant worm and gear.

2. High pressure automatic oil motor with filter and cooling fan recycles the oil to lubricate the main transmission parts (crankshaft, worm and gear). And the auto oil pump lubricates all of the necessary parts (gear, chains, etc.)

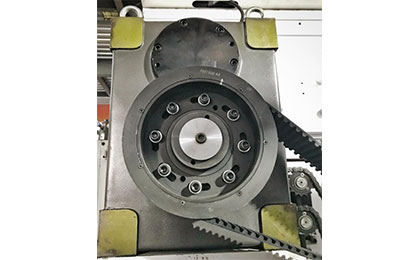

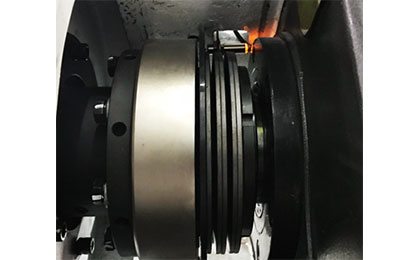

3. Big flywheel with the pneumatic clutch guarantees high precision when machine is high speed running.

4. Automatic pressure adjustment system, operator just need to set value on touch screen to adjust pressure.

5.Human-friendly design for die and liner plate (Manganese Steel, HRC50-53) changing. Die frame can be overturned and locked pneumatically.

6. The box-type cam intermittent mechanism with a large oscillating angle and high torque enables the paper gripper bars to operate more smoothly and reliably, reducing the likelihood of misalignment during the printing process, and it is equipped with a reliable overload torque protection system.

7. High-strength Ti-Al alloy grippers and wear-resisting chains for gripper bar.

Paper Delivery Section

1. Automatic aligning device, double side blowers and hair brush guarantee paper pile in good order, no matter the paper is thick or thin.

2. Overrun-prevention device: The sheet is moved upwards with the gripper bar, the detection sensor will be initiated and machine will stop.

3. Gripper chains protection device: sensors are connected to the main chains to monitor the tightness of the chains. When it is detected to be loose, the machine will be stopped.

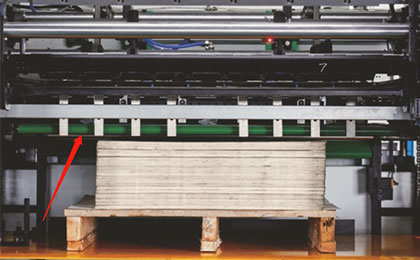

4. The non-stop paper delivery device.

5. Tag insert device(1 set) to record the sheets quantity.

Electrical box and control system

1. Interface controls are integrated, and numerous electrical switch controls are set in operation screen which is easy operation and easy understanding.

2. PLC centralized controlling system can automatically examine the working status and test unusual status as well as record the working condition.

3. Problem diagnosis function on touch screen, if any problems occur, you can check touch screen to find it.

4. Chinese, English or other any language(optional) on touch screen

5. Electrical components and electrical circuit are in accord with Europe American safety standard.
